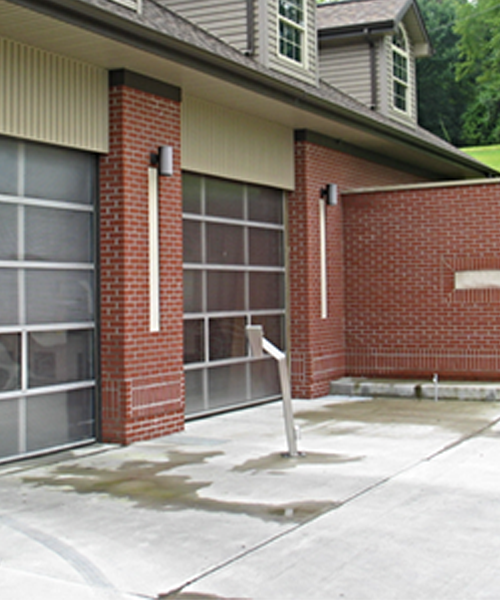

WORLD'S TOUGHEST FULL-VIEW POLY GARAGE DOORS
Translucent, light-weight and impact-resistant, this garage door section design is constructed with clear or colored multi-wall polycarbonate panels coupled with a high-strength aluminum frame designed specifically for high moisture situations. Special characteristics have defined the standard for car, truck, bus wash and many other wash-down applications for almost three decades.
Unsurpassed Durability
Constructed of the toughest corrosion and rust-resistant materials available.
Reliable Operation
Designed for frequent and high-use situations.
Low Maintenance
Engineered and manufactured for minimal maintenance and service.
High Visibility Attractiveness
Distinct appearance attracts customers and enhances your buildings appearance.
Complete Weather Protection
5 X-Wall polycarbonate panel offers excellent structural integrity and thermal protection in any climate.

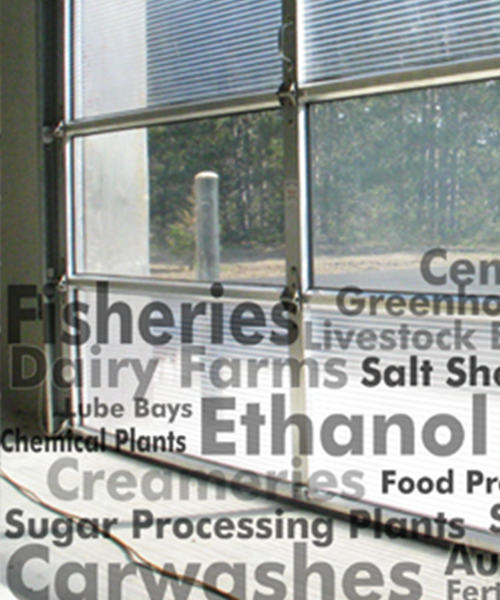

STANDARD FEATURES
Tough, Shatterproof 5/8” Five X-Wall Lexan™ Panels
Beveled Aluminum Stiles & Rails - No Watertraps!!
3” Angle Mounted Track - Up to 4’ Highlift
Extended 1” Solid Keyed Shaft-
Headplates On Highlift Track Configurations
100,000 High Cycle Springs (up to 144sq. ft) or Counterweight System
Bottom Vinyl Bulb Weatherseal
VIDEO CONTENT & RESOURCES
Proudly Serving The Car Wash And Other Industries For Over 30 Years
Best Truck Wash BayDoors
Department of Transportation truck wash bays are a tough environment for a garage door.
Best Carwash Door?
Every car wash owner we talk to wants the same thing: Problem free operation.
Polycarbonate Car Wash Doors
We built this door to do one thing better than ANY other door: Survive in the harshest environments possible.

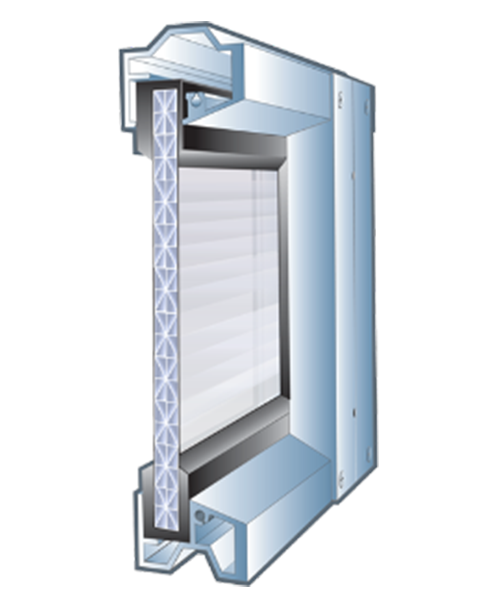

Advanced Materials.... Superior Product
5/8" Five-Wall Polycarbonate Panel
Tough, shatterproof and translucent polycarbonate panels are corrosion resistant and virtually indestructable.
Aluminum Alloy Frame
Corrosion resistant aluminum stiles and rails provide a strong durable frame. Uniform stile thickness for better fastener holding power.
Beveled Aluminum Rails
Tongue and groove meeting rails are beveled to shed moisture and eliminate water traps.
Double Panel Seal
Double panel seal provides protection from moisture infiltration.

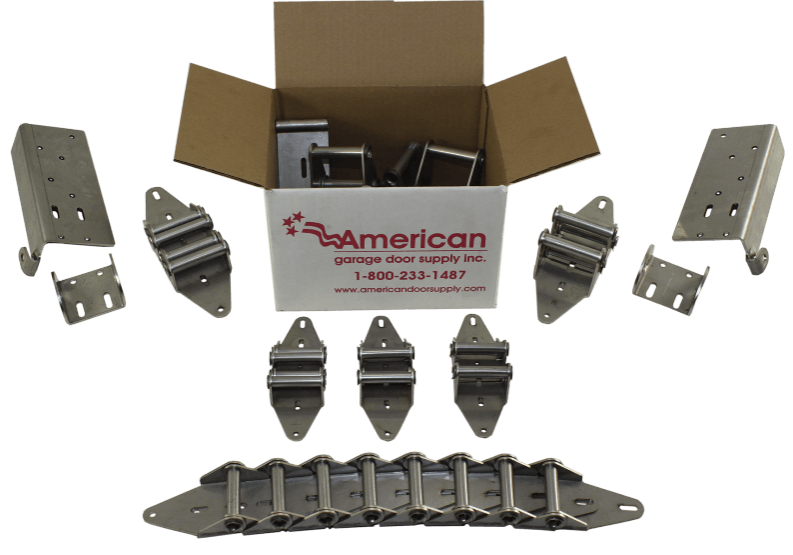

Hardware Packages To Meet Your Needs
Several hardware models are available to meet your building exposures, environment, amount of use and other requirements. Select the model that fits your buildings requirements and exposures to moisture, corrosion and other contaminants. Each model includes a different combination of materials ranging from corrosion-resistant galvanized hardware, to completely rust-resistant stainless steel.
YOUR CHOICE OF COUNTERBALANCE SYSTEMS
American Garage Door Supply’s door systems offer a number of counterbalance systems to meet your operation’s needs. Select our high cycle, rust-resistant torsion spring models for most applications or select our strap counterweight or cable counterweight systems for use in applications where you need them.

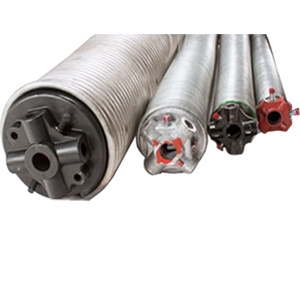

Excellent for either manual or automated door systems, our high-cycle torsion spring models offer up to 100,000 cycles of safe, smooth and perfectly balanced operation. Choose either hot-dipped galvanized wire for standard corrosion-resistance or upgrade to totally rust-resistant stainless steel wire for those tougher situations.

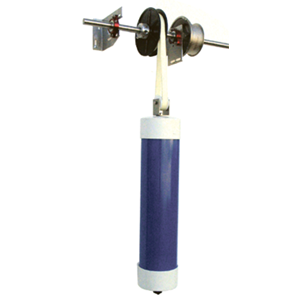

Featuring a durable, rust-proof spool, aluminum winding hub, counterweight, guide tube and tough, virtually unbreakable reinforced nylon strap, our strap system offers you hundreds of thousands of cycles of smooth, quiet and dependable operation of your garage door system in the most demanding conditions. Best used with automated doors.

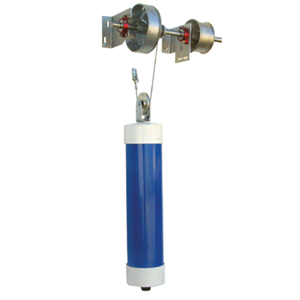

The cable counterweight models feature an aluminum counterweight drum, counterweight, guide tube and stainless steel non-rotating cable for smooth, reliable operation of your door cycle-after-cycle in rigorous conditions. Use for doors that require a counterweight system and are oversized. Best used on automated doors.
