FULL VISION GLASS GARAGE DOORS

Designed And Manufactured For High Visibility And High Use Environments

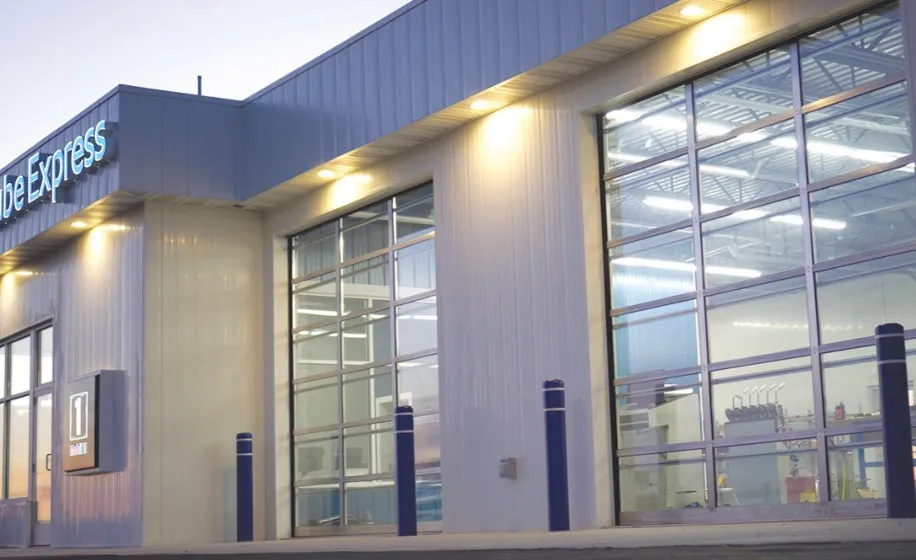

High-quality, clear, tempered glass with high-strength aluminum frame makes the Ultraclear the clear choice for any situation that requires full visibility through the door. An excellent choice for: Car washes, auto dealerships, service stations, fire departments, lube shops, swimming pools, restaurants, store fronts and many others.

Unsurpassed Durability

Constructed of the most advanced materials available. Ultraclear doors deliver state-of-the-art features to provide you with maximum durability in both standard and demanding applications.

Reliable Operation

Designed for high use applications, Ultraclear doors feature a better system design and superior hardware that ensures reliable operation year-after-year.

Low Maintenance

Engineered and manufactured for minimal maintenance and service. Reduces annual costs and delivers a better overall value for your operation.

Complete Weather Protection

Protects customers, vehicles, building interior and equipment from wind, cold weather and other elements. Choose from single pane or insulated glass panels. Panels are fully-gasketed and sealed for complete climate protection.

Standard Features:

  • Clear, Safe, Tempered Glass Panels
  • Beveled Aluminum Stiles & Rails- No Watertraps!
  • 3” Angle Mounted Track - Up to 4’ Highlift
  • Extended 1” Solid Keyed Shaft
  • Headplates On Most Highlift Track Configurations
  • 100,000 High Cycle Springs (up to 144sq. ft) or Counterweight System
  • Bottom Rubber Bulb Weatherseal
ultraclear garage door logo
ultraclear full vision garage doors
ultraclear full vision polycarbonate garage door
ultraclear garage door

Specifications

By Hardware Package

More Information

Need More Help? Contact Us.

download

Silver

Competitive Model

download

Gold

Deluxe Model

download

Platinum

Premium Model

download

Warranty

PDF Document

download

Catalog

PDF Document

download

Brochure

PDF Document

SELECT THE HARDWARE MODEL THAT FITS YOUR APPLICATION

Select the best hardware package that fits your buildings requirements by choosing from three exceptional hardware models. Each are designed with a different percentage of stainless steel hardware to handle a different level of exposure to moisture & corrosion. American Garage Door Supply includes heavy duty hardware as a standard; all Platinum, Gold and Silver models include: 3” track and heavy duty hardware, high cycle springs, stainless steel cable, solid & keyed torsion shafts, greaseable bearings, Magnum rollers and high quality head-plates on all highlift garage door models.

stainless steel garage door hardware
platinum icon

PREMIUM MODEL

  • Hinges/Hardware: 12ga Stainless
  • Track: 3” Heavy Duty Stainless Steel
  • Bearing Plates: 12ga Stainless
  • Shaft: Solid, Keyed Stainless Steel
  • Drums: Specialty Coated
  • Couplers: Specialty Coated
  • Bearings: Greaseable, Stainless
  • Cable: 5/32" Stainless Steel
  • Rollers: 3" Magnum SP Carwash
  • Fasteners: Stainless/Specialty Coated
  • Torsion Springs: Stainless Steel
gold icon

PREMIUM MODEL

  • Hinges/Hardware: 12ga Stainless
  • Track: 3” Heavy Duty Galvanized
  • Bearing Plates: 12ga Stainless
  • Shaft: Solid, Keyed Stainless Steel
  • Drums: Specialty Coated
  • Couplers: Specialty Coated
  • Bearings: Greaseable, Stainless
  • Cable: 5/32" Stainless Steel
  • Rollers: 3" Magnum Original Carwash
  • Fasteners: Stainless/Specialty Coated
  • Torsion Springs: Galvanized
silver icon

PREMIUM MODEL

  • Hinges/Hardware: 11ga Galvanized
  • Track: 3” Heavy Duty Galvanized
  • Bearing Plates: 11ga Galvanized
  • Shaft: Solid, Galvanized
  • Drums: Die Cast Aluminum
  • Couplers: Painted Cast Iron
  •  Bearings: Greaseable, Standard
  • Cable: 5/32" Stainless Steel
  • Rollers: 3" Magnum Original Carwash
  • Fasteners: Galvanized
  • Torsion Springs: Galvanized
bronze icon

PREMIUM MODEL

  • Hinges/Hardware: 14ga Galvanized
  • Track: 2" Heavy Duty Galvanized
  • Bearing Plates: 11ga Galvanized
  • Shaft: Hollow, Galvanized Steel
  • Drums: Die Cast Aluminum
  • Couplers: None
  • Bearings: Standard Freeway
  • Cable: 5/32" Galvanized Steel
  • Rollers: Commercial Steel, 10 Ball
  • Fasteners: Galvanized Steel
  • Torsion Springs: Galvanized

YOUR CHOICE OF COUNTERBALANCE SYSTEMS

American Garage Door Supply’s door systems offer a number of counterbalance systems to meet your operation’s needs. Select our high cycle, rust-resistant torsion spring models for most applications or select our strap counterweight or cable counterweight systems for use in applications where you need them.

TORSION SPRING

garage door torsion springs

Excellent for either manual or automated door systems, our high-cycle torsion spring models offer up to 100,000 cycles of safe, smooth and perfectly balanced operation. Choose either hot-dipped galvanized wire for standard corrosion-resistance or upgrade to totally rust-resistant stainless steel wire for those tougher situations.

STRAP COUNTERWEIGHT

garage door strap and counterweight

Featuring a durable, rust-proof spool, aluminum winding hub, counterweight, guide tube and tough, virtually unbreakable reinforced nylon strap, our strap system offers you hundreds of thousands of cycles of smooth, quiet and dependable operation of your garage door system in the most demanding conditions. Best used with automated doors.

CABLE COUNTERWEIGHT

garage door cable and counterweight

The cable counterweight models feature an aluminum counterweight drum, counterweight, guide tube and stainless steel non-rotating cable for smooth, reliable operation of your door cycle-after-cycle in rigorous conditions. Use for doors that require a counterweight system and are oversized. Best used on automated doors.

Ultraclear Door Information Request

NEED HELP CHOOSING THE RIGHT DOOR PACKAGE FOR YOUR PROJECT? GIVE US A CALL TODAY AT 800-233-1487

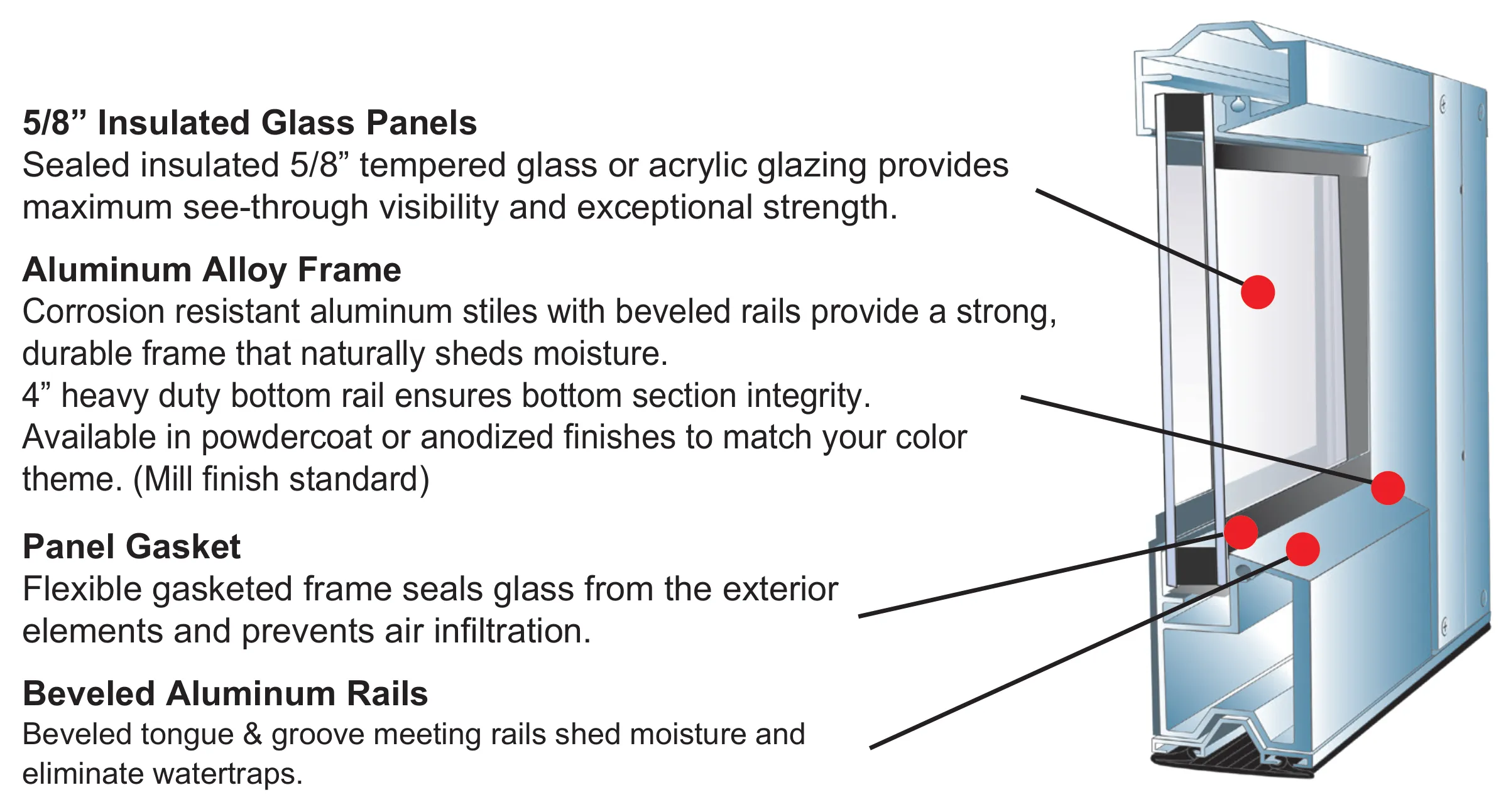

Advanced Materials, Superior Product.

  • 5/8" Insulated or Single Glass Panels Sealed insulated 5/8" tempered glass provides maximum visibility and exceptional strength. 1/8" glass or other panel materials available.
  • Aluminum Alloy Frame Corrosion resistant aluminum stiles with beveled rails provide a strong, durable frame that naturally sheds moisture. 4" heavy duty bottom rail ensures bottom section integrity. Available in powdercoat or anondized finishes to match your color theme.
  • Panel Gasket Flexible gasketed frame seals glass from exterior elements and air infiltration.
  • Beveled Aluminum Rails Tongue & groove and beveled meeting rails shed moisture and eliminate watertraps.
ultraclear garage door cutaway
ultraclear garage door cutaway inset

Hardware Packages To Meet Your Needs

Several hardware models are available to meet your building exposures, environment, amount of use and other requirements. Select the model that fits your buildings requirements and exposures to moisture, corrosion and other contaminants. Each model includes a different combination of materials ranging from corrosion-resistant galvanized hardware, to completely rust-resistant stainless steel.

stainless steel garage door components
