Supralift Air Powered Opener
The car wash and lube bay favorite for decades
Since 1989 Designed and built in Bemidji, Minnesota National dealer network
Overview
Supralift II Garage Door Openers are a great value over time and are an excellent choice for any car wash, lube bay, or other high-use garage door system, especially one that is subject to moisture and corrosion. A favorite among car washes and auto dealerships for decades, these openers are durable, reliable, and have minimal service requirements.
Ask around the car wash trade and you will find Supralift openers that have been cycling daily for longer than some of the buildings around them. That reputation is the product: a simple, proven air-powered design with few points of failure, tolerant of the moisture that ruins electric operators, and cheap to keep in service. For operators who measure cost over the life of the equipment instead of the purchase order, Supralift keeps winning.
Why It Works
- Decades of proven service in car wash and lube bays.
- Minimal service requirements.
- Moisture- and corrosion-tolerant.
- Excellent value over the operator's service life.
- Simple design means fast, inexpensive repairs when they are needed.
- The answer for high-lift track and doors that were never designed to open all the way to the header.
- All aluminum and stainless steel construction, so the operator does not rust out before the door does.
Technical details
Specification Highlights
- ▪ Jackshaft mounted to the side of the door track
- ▪ All aluminum cylinder, piston, and end cap design
- ▪ Lubrication-free piston cylinders
- ▪ Stainless steel mounting brackets and stainless steel sprocket
- ▪ Waterproof chain as standard, with a Posi-Lock chain collar and aluminum turnbuckle
- ▪ Quick connect push fittings and flow control kit included
- ▪ NEMA-4X watertight control box with valve, filter, regulator, OSHA cut-off valve, and double-sealed push buttons
- ▪ Emergency open button or thermostat optional
- ▪ Accepts push buttons, radio controls, remote buttons, photoeyes, loops, contact switches, relays, and proximity switches
- ▪ Safety options include photo eyes, loop detector, and bottom edges for safety reverse
Design & performance
Engineered for the Environment
- Mounts Where the Header Will Not Allow
- The jackshaft position on the side of the track suits high-lift configurations and doors that cannot open completely to the header, which is where most retrofits get stuck.
- How It Works
- A dual cylinder and piston assembly mounts to the door track, with an air valve and regulator between your compressor and the operator. The drive chain attaches to the top of each piston rod and loops over a sprocket on the door's torsion shaft.
- Easy on the Door
- Supralift accelerates and decelerates at the beginning and end of each cycle, and on the down signal the door closes with a cushiony stop that prevents cable spooling and unwanted door jerking.
- Fewer Freeze-Ups
- A remote flow control system keeps operation smooth over the years, with less downtime for freeze-ups and seal replacement.
Product Details

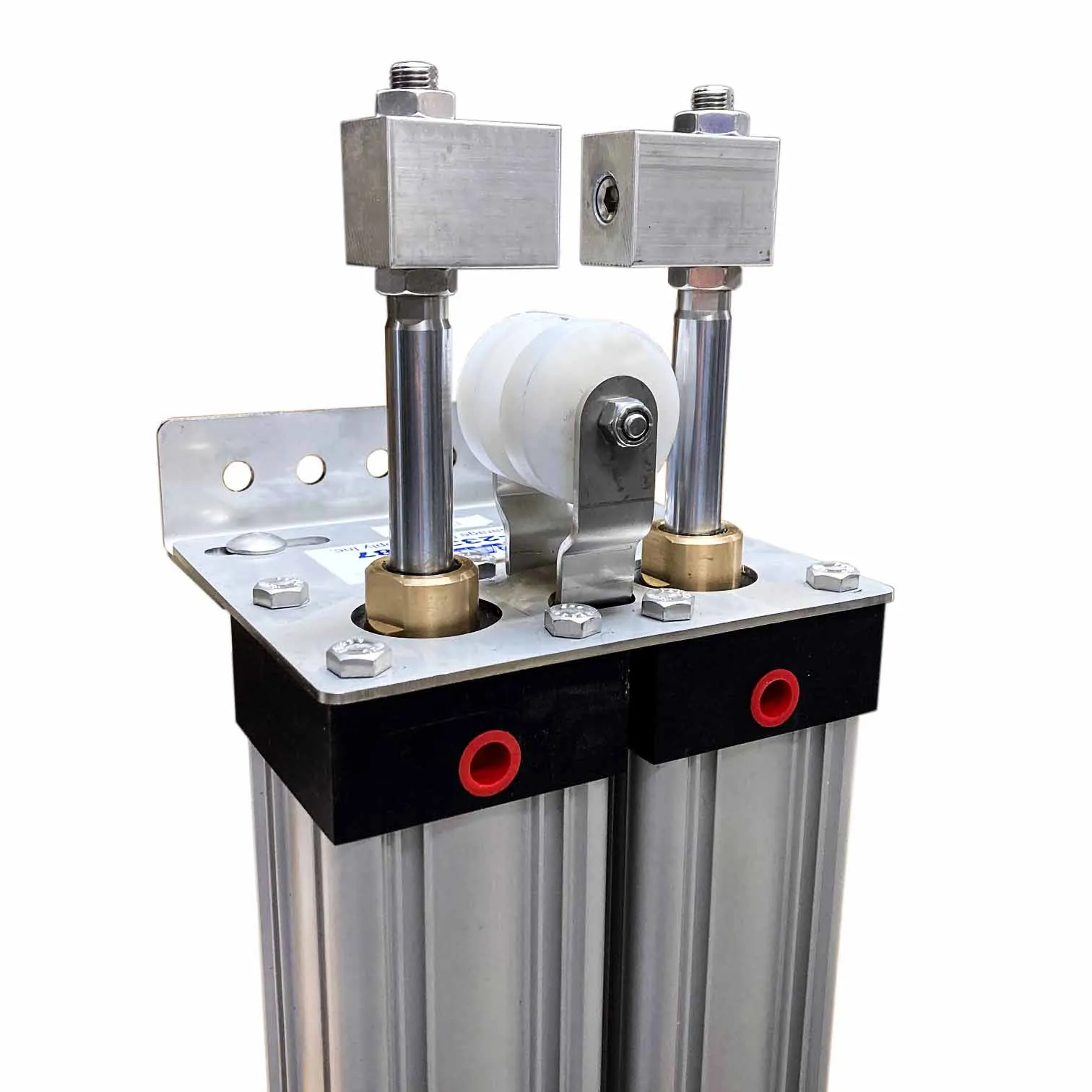

Dual Cylinder Assembly
The dual cylinder and piston assembly. Aluminum cylinders and end caps with a stainless bracket and sprocket, so the operator does not rust out before the door does. The chain attaches at the top of each rod.
SUPRALIFT Top Cap Seal Kit Identification Guide
Identify your SUPRALIFT cylinder before ordering replacement seals. This illustrated guide compares Norgren, IMI, Parker, and Numatics cylinders using manufacturing dates, bushing details, and retaining rod designs.
Find the corresponding top cap seal kit, piston seal, and bushing part numbers in the two-page reference.
Download identification guide (PDF)Talk through your project
The opener the trade keeps coming back to
Replacing a tired opener or outfitting a new bay? Tell us the door it needs to move, the track configuration, and how hard it cycles. We will quote the Supralift package, which integrates easily with car wash and other equipment, and the parts to keep it running are always in reach.
Quotes, parts, or service. Share what you know, and we will help with the rest.
