American Garage Door Supply, Inc.

Product Line

Stainless Entry Doors

Tough applications need tough products

Tough applications demand tough products. When it comes to our stainless door systems, there are no exceptions. Choose the stainless door with rust-resistant features.

Personnel doors in washdown and chemical environments fail quietly: rust blooms at the hinges, the frame swells and pits, and one day the door will not latch. Our stainless entry doors remove the failure mode at the material level. Tough, durable, and attractive stainless steel panels combined with high-quality stainless steel frames deliver the rust-free qualities you need in harsh areas, with the clean appearance that inspected facilities are held to.

That is why they end up in food processing plants, marine facilities, chemical environments, and laboratories, the places where a rusting door is not just ugly but a compliance problem.

Car WashesTruck WashesBus WashesFood ProcessingChemical PlantsDairiesMarinasPoolsSlaughter HousesPoultry Farms

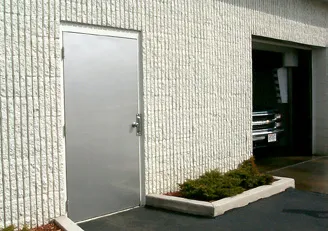

Stainless entry door installed in a masonry car wash wall beside an open overhead door bay
Installed T8 stainless entry door. The same buildings that run our overhead doors run these beside them.

Quality Features, Standard on Every Door

  • Full thermal break of jambs, header, threshold, and panel
  • 24 ga. 304 stainless steel door panel
  • Foamed-in-place R-12 insulation
  • Full perimeter weather stripping
  • 16 ga. x 3-1/2" 304 stainless steel (T8) or extruded aluminum (A1) jambs
  • Nylon lock insert
  • Stainless steel hinges
  • Adjustable strike plate
  • Standard sizes 3'0" x 6'8" and 3'0" x 7'0", larger sizes below

Two Frame Systems, One Stainless Panel

Both systems carry the same 1-3/4" thermally broken 304 stainless panel. The choice is the frame: welded stainless for the harshest exposures, or extruded aluminum for economy and fast installation.

T8 Stainless

Stainless Frame

T8 Stainless entry door, stainless frame, shown without window
Shown without window

The all-stainless system. When the door lives in constant wash chemistry or a corrosive atmosphere, the frame should not be the first thing to fail.

  • 1-3/4" 24 ga. thermally broken 304 stainless steel panel
  • 3-1/2" 16 ga. stainless steel welded frame with full thermal break of jambs and thresholds
  • Full perimeter weather stripping, removable for easy cleaning
  • 316 stainless available up to 6/0 x 8/0 double doors
3-1/2" welded stainless frame profile, 1-7/8" face with 1-1/8" return
3-1/2" welded stainless frame profile, 1-7/8" face with 1-1/8" return
T8 Stainless door part numbers
Single DoorsPart #
3/0 x 6/8 Thermal DoorT8-3068SS304
3/0 x 7/0 Thermal DoorT8-3070SS304
3/0 x 8/0 Thermal DoorT8-3080SS304
4/0 x 6/8 Thermal DoorT8-4068SS304
4/0 x 7/0 Thermal DoorT8-4070SS304
4/0 x 8/0 Thermal DoorT8-4080SS304
Double DoorsPart number
6/0 x 6/8 Thermal DoorT8-6068SS304
6/0 x 7/0 Thermal DoorT8-6070SS304
6/0 x 8/0 Thermal DoorT8-6080SS304
8/0 x 7/0 Thermal DoorT8-8070SS304
8/0 x 8/0 Thermal DoorT8-8080SS304

A1 Stainless

Aluminum Frame

A1 Stainless entry door, aluminum frame, shown with window
Shown with window

The same 304 stainless panel in an extruded aluminum frame. Nailing and non-nailing jambs make it the fast fit for new construction and retrofits alike.

  • 1-3/4" 24 ga. 304 stainless steel panel
  • 3-1/2" extruded aluminum frame with nailing and non-nailing jambs
  • Stainless steel fixed-pin hinges and adjustable strike plate
  • Mill finish frame with white flange installed
  • Available in full stainless, or 1/2 white and 1/2 stainless panel
3-1/2" standard jamb and nailing flange, installs on either side for in-swing or out-swing
3-1/2" standard jamb and nailing flange, installs on either side for in-swing or out-swing
A1 Stainless door part numbers
Single DoorsPart #
3/0 x 6/8 Thermal DoorA1-3068SS
3/0 x 7/0 Thermal DoorA1-3070SS
4/0 x 6/8 Thermal DoorA1-4068SS
4/0 x 7/0 Thermal DoorA1-4070SS
4/0 x 8/0 Thermal DoorA1-4080SS
Double DoorsPart number
6/0 x 6/8 Thermal DoorA1-6068SS
6/0 x 7/0 Thermal DoorA1-6070SS
8/0 x 7/0 Thermal DoorA1-8070SS
8/0 x 8/0 Thermal DoorA1-8080SS

The Details That Decide Service Life

Cutaway drawing of the non-collapsible nylon lock insert inside the door panel

Non-Collapsible Nylon Insert

Eliminates lockset loosening. No wood block to deteriorate or absorb moisture. Standard on T8 and A1 doors.

Hand pulling the removable weather stripping out of a stainless door frame

Removable Weather Stripping

The full-perimeter weather stripping pulls out for easy cleaning, which matters in a doorway that gets washed down daily.

Corner of an A1 aluminum door frame showing the mill finish with white flange installed

Finished Frame Corners

A1 frames ship mill finish with the white flange installed, so the opening looks finished the day it goes in.

Window Options

Standard window options for both A1 and T8 doors, available in vinyl or stainless. Call 800-233-1487 for the right fit.

Window part numbers
Part #Description
DRW-16X1616 x 16 PVC Window
DRW-22X3022 x 30 PVC Window
DRW-20X2420 x 24 PVC Window

Ordering notes

  • When ordering windows, you must specify door swing.
  • When ordering double doors, you must specify the active door panel.
  • Provide your own handle and lockset, or ask us about accessory options.

Accessories

Accessory part numbers
Part #Description
DRL-200252Stainless Steel Kickplate, 10" x 34"
DRL-200312Stainless Pull Plate, 3-1/2" x 15"
DRL-200311Stainless Push Plate, 8" x 16"
DRL-100325Panic Release Bar, no exterior hardware
DRL-100324Panic Release Bar, exterior knob
DRL-200282Panic Release Bar, exterior lever
DRL-100285Door Closer #3, regular arm
DR-200290Stainless Steel 5" Variable Frame Extension
DR-200292Stainless Steel 8" Variable Frame Extension
DR-200294Stainless Steel 10" Variable Frame Extension
DR-200296Stainless Steel 12" Variable Frame Extension
DRL-200202EZCommercial Deadbolt

Door Swing Reference

Swing is called from the outside of the building. Use these diagrams to confirm right-hand or left-hand, in-swing or out-swing, before ordering.

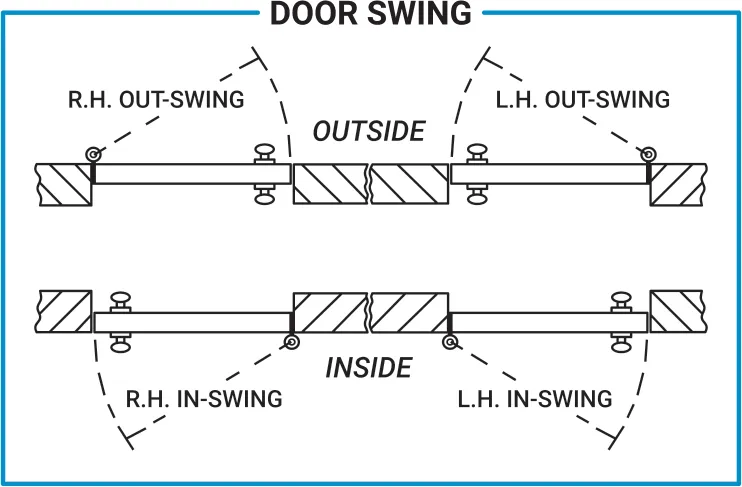

Single door swing diagram showing right-hand and left-hand, in-swing and out-swing, viewed from outside and inside
Single doors

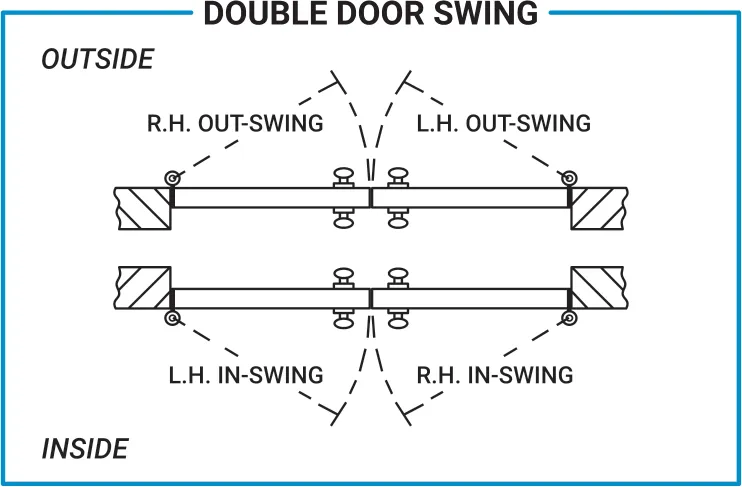

Double door swing diagram showing right-hand and left-hand out-swing and in-swing combinations
Double doors

The personnel door that matches the rest of the building

If your facility already runs stainless everywhere else, the entry doors should not be the weak point. Send us the opening sizes, how the wall is built, and the environment. We will confirm the mounting option and quote the stainless package.
