Survivor Goliath Garage Doors

Why It Works

• Extra-large translucent polycarbonate panels for daylight transmission.
• Heavy-duty aluminum bottom rail engineered for oversized widths.
• Hat-strut reinforcement keeps tall doors rigid through every cycle.
• Built for ag, trucking, DOT, and large industrial openings.
• Same corrosion-resistant materials as the Survivor line.
• 5 X-wall sections add thermal protection at full-building scale.
• Light passes both ways, so the bay stays visible and secure around the clock.
• Offered in the Silver, Gold, and Platinum hardware models.

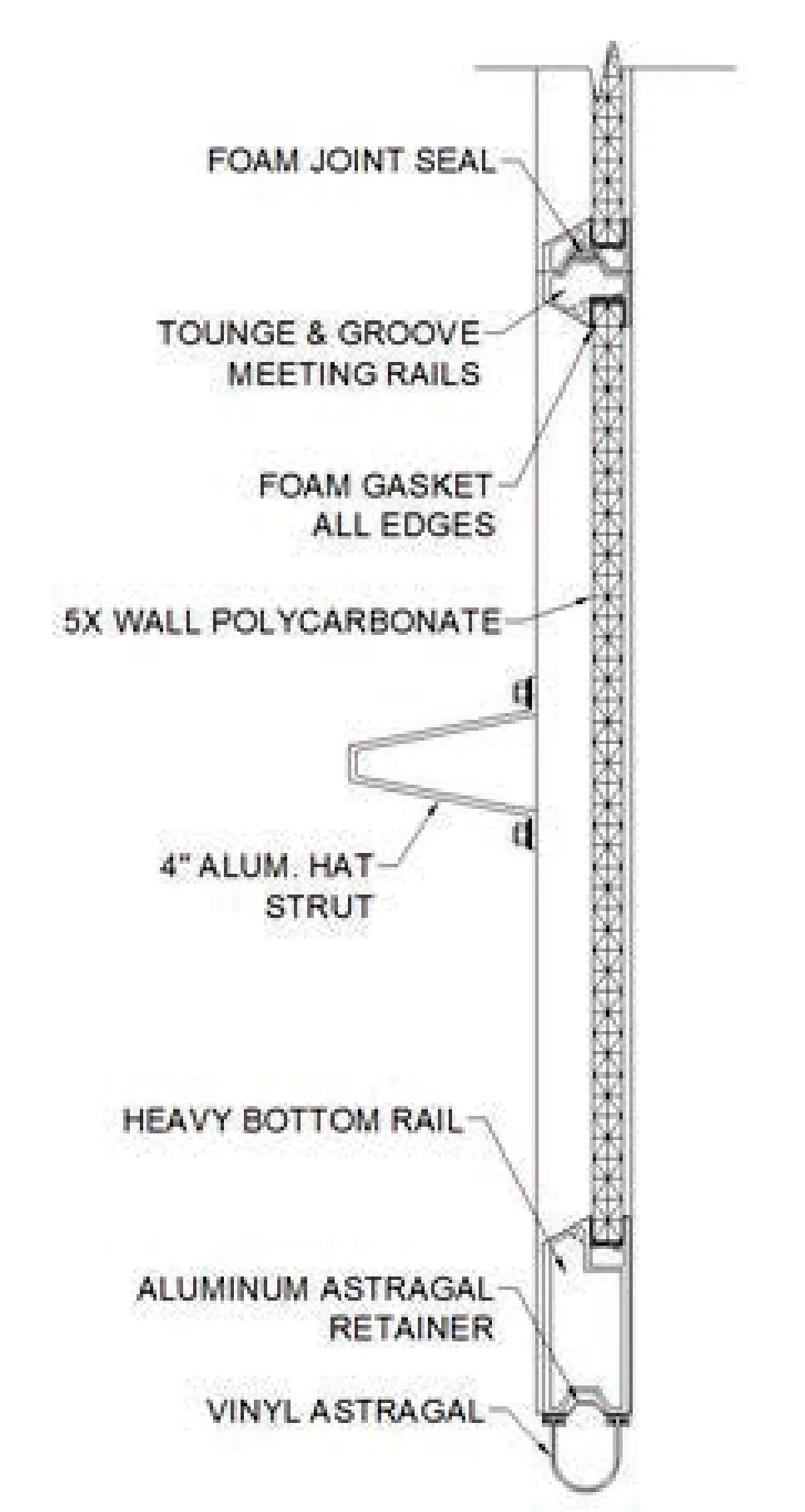

How the Section Is Built

A wide door fails at the bottom rail first and a tall door fails in the wind. Goliath answers both in the section itself: an extra heavy-duty bottom rail and a 4" aluminum hat strut, wrapped in the same corrosion-proof materials as the rest of the Survivor line.

Published Sizes & Planning Numbers

Goliath uses the heavy bottom rail shared with UltraClear, not the standard Survivor rail, so replacement sections are line-specific. Send the opening size and we will confirm the configuration.

Engineered for the Environment

No More Smiling Effect

The heavy-duty aluminum bottom rail keeps the door straight and true with the strength a wide span needs, which virtually eliminates the sagging "smiling effect" common with other products.

Hat-Strut Reinforcement

An extra-large aluminum hat strut provides the rigidity you need to resist the wind and prevent deflection on tall sections.

Translucent Panels at Scale

Multiwall polycarbonate brings natural light deep into large buildings and cuts daytime lighting costs, and light transmittance both inside and outside the doorway keeps the bay visible after dark.

Corrosion-Resistant Build

Aluminum frame and polycarbonate panels handle washdowns, salt exposure, and humidity without rusting.

Options for Tunnel Washes

Conveyor cutouts and the hinge gasket option address the two things that make a big door awkward in a tunnel: equipment passing through the opening, and water finding its way through the hinge line.

Other Configuration Options

Full vision sections, powder coat or anodized finish, specialty coated shaftline components, and polycarbonate color options.

Counterbalance: How the Door Carries Its Own Weight

Goliath is counterbalanced by torsion spring only. At these sizes that is a feature, not a limitation: the spring system is matched to the door weight through drum selection, which is also what sets the headroom requirement.

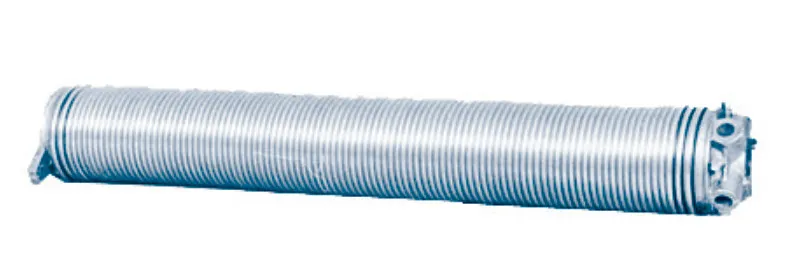

Rust-Resistant Torsion Springs

Manual or automated doors, with high-cycle models available. Standard hot-dipped galvanized spring wire, or stainless steel wire where washdown chemistry is part of the daily routine.

Choose it when: Every Goliath. Drum selection tunes the system to the door size and available headroom.

Hardware Package Options

Select the hardware package that fits your building's exposure level. American Garage Door Supply includes heavy-duty hardware as standard across every tier.

The entry Bronze package is not offered on Goliath. A door this size should not be hanging on 2" track.

Build It for Your Bay

Every door is configured to order. These are the options we quote most often.

Conveyor Cut-Outs

Custom-designed cut-outs align the bottom section with tunnel equipment, which is what makes a big door workable in a wash tunnel.

Hinge Gasket Kits

Gaskets isolate stainless hinges from the aluminum frame to stop bi-metallic corrosion. Included with the Platinum package.

Powder Coat & Anodized Frames

Seven stock powder coat colors plus anodized finishes, applied and cured before the door ships.

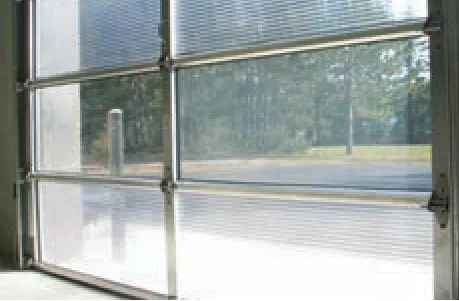

Full-Vision Sections

Insulated acrylic full-vision sections bring see-through visibility to any position in the door.

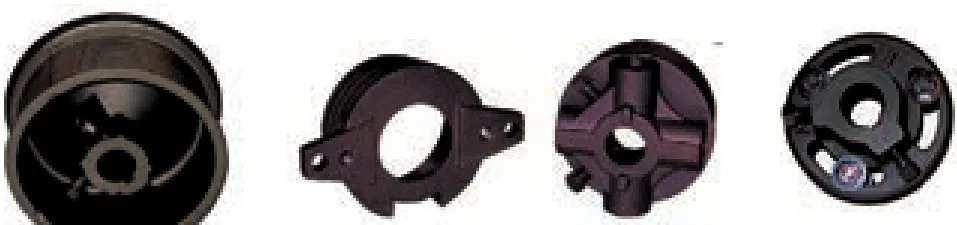

Specialty-Coated Shaftline

Coated drums, cones, and couplers built for salt and washdown chemistry.

Polycarbonate Colors

Clear panels are standard, with other colors available on request.
