WORLD'S TOUGHEST FULL-VIEW POLY GARAGE DOORS

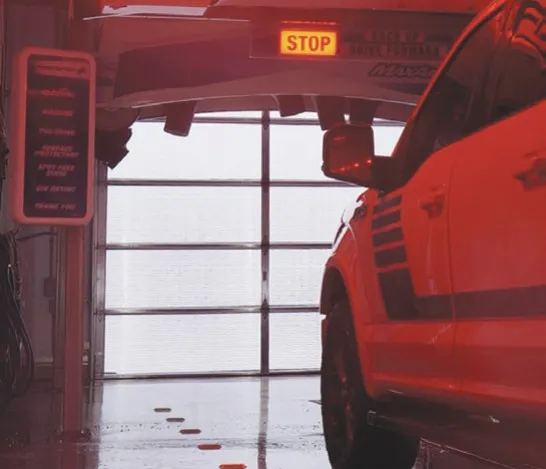

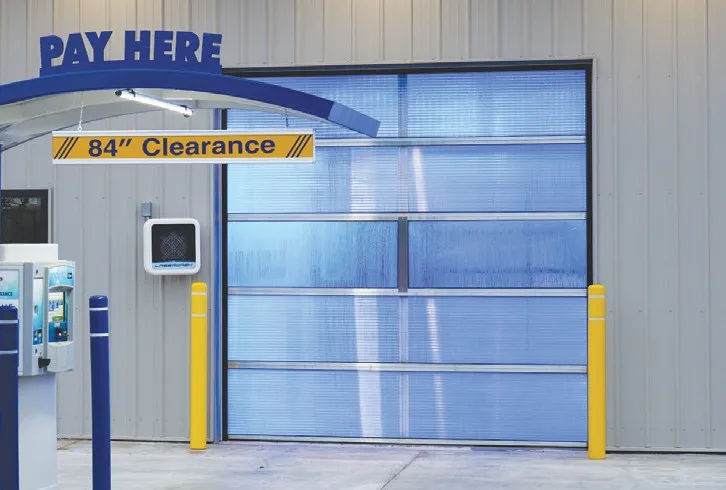

Translucent, light-weight and impact-resistant, this garage door section design is constructed with clear or colored multi-wall polycarbonate panels coupled with a high-strength aluminum frame designed specifically for high moisture situations. Special characteristics have defined the standard for car, truck, bus wash and many other wash-down applications for almost three decades.
Unsurpassed Durability
Constructed of the toughest corrosion and rust-resistant materials available.
Reliable Operation
Designed for frequent and high-use situations.
Low Maintenance
Engineered and manufactured for minimal maintenance and service.
High Visibility Attractiveness
Distinct appearance attracts customers and enhances your buildings appearance.
Complete Weather Protection

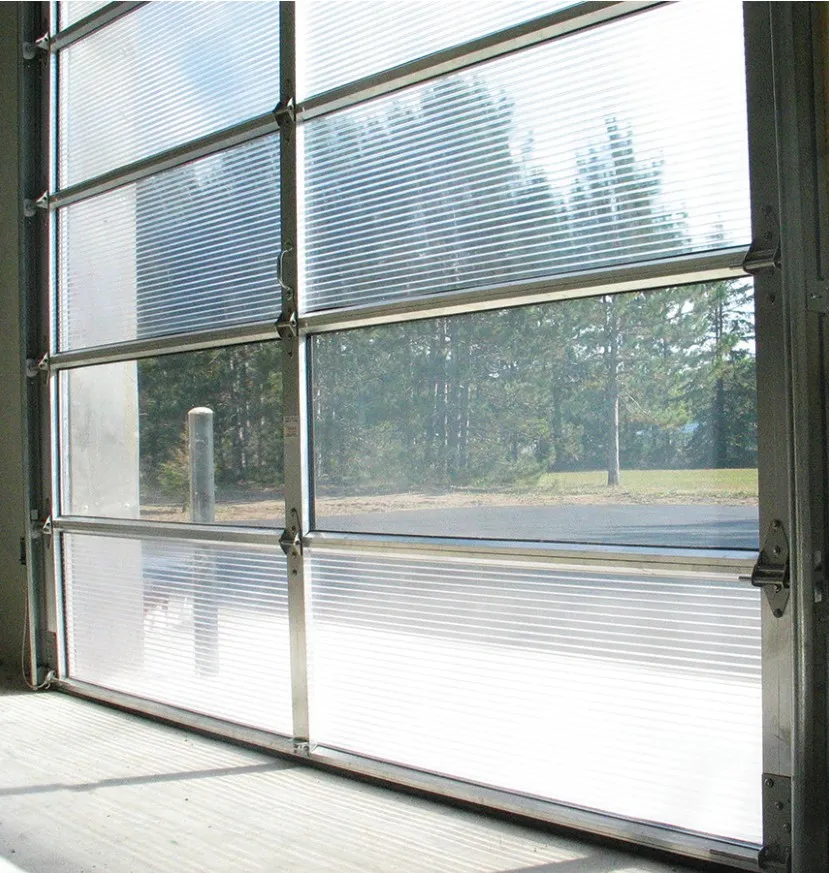

5 X-Wall polycarbonate panel offers excellent structural integrity and thermal protection in any climate.
STANDARD FEATURES
- Tough, Shatterproof 5/8” Five X-Wall Lexan™ Panels
- Beveled Aluminum Stiles & Rails - No Watertraps!!
- 3” Angle Mounted Track - Up to 4’ Highlift
- Extended 1” Solid Keyed Shaft-
- Headplates On Highlift Track Configurations
- 100,000 High Cycle Springs (up to 144sq. ft) or Counterweight System
- Bottom Vinyl Bulb Weatherseal
NEED HELP CHOOSING THE RIGHT DOOR PACKAGE FOR YOUR PROJECT? GIVE US A CALL TODAY AT 800-233-1487
Specifications
By Hardware Package
More Information
Need More Help? Contact Us.

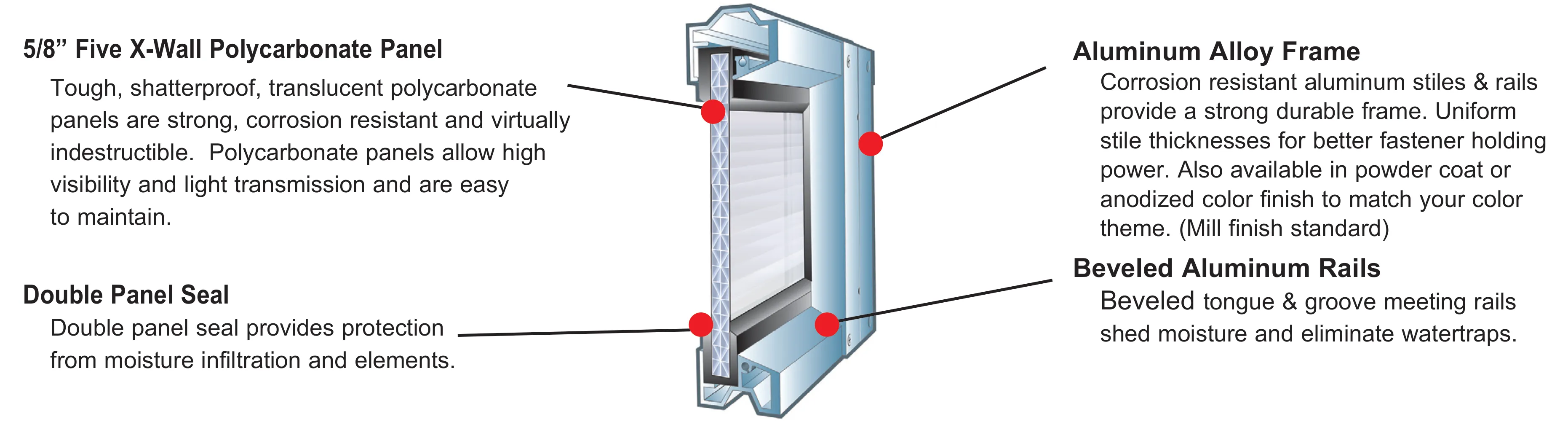

Advanced Materials.... Superior Product
- 5/8" Five-Wall Polycarbonate Panel: Tough, shatterproof and translucent polycarbonate panels are corrosion resistant and virtually indestructable.
- Aluminum Alloy Frame: Corrosion resistant aluminum stiles and rails provide a strong durable frame. Uniform stile thickness for better fastener holding power.
- Beveled Aluminum Rails Tongue and groove meeting rails are beveled to shed moisture and eliminate water traps.
- Double Panel Seal: Double panel seal provides protection from moisture infiltration.
Hardware Packages To Meet Your Needs
Several hardware models are available to meet your building exposures, environment, amount of use and other requirements. Select the model that fits your buildings requirements and exposures to moisture, corrosion and other contaminants. Each model includes a different combination of materials ranging from corrosion-resistant galvanized hardware, to completely rust-resistant stainless steel.
SELECT THE HARDWARE MODEL THAT FITS YOUR APPLICATION
Select the best hardware package that fits your buildings requirements by choosing from three exceptional hardware models. Each are designed with a different percentage of stainless steel hardware to handle a different level of exposure to moisture & corrosion. American Garage Door Supply includes heavy duty hardware as a standard; all Platinum, Gold and Silver models include: 3” track and heavy duty hardware, high cycle springs, stainless steel cable, solid & keyed torsion shafts, greaseable bearings, Magnum rollers and high quality head-plates on all highlift garage door models.
PREMIUM MODEL
- Hinges/Hardware: 12ga Stainless
- Track: 3” Heavy Duty Stainless Steel
- Bearing Plates: 12ga Stainless
- Shaft: Solid, Keyed Stainless Steel
- Drums: Specialty Coated
- Couplers: Specialty Coated
- Bearings: Greaseable, Stainless
- Cable: 5/32" Stainless Steel
- Rollers: 3" Magnum SP Carwash
- Fasteners: Stainless/Specialty Coated
- Torsion Springs: Stainless Steel
PREMIUM MODEL
- Hinges/Hardware: 12ga Stainless
- Track: 3” Heavy Duty Galvanized
- Bearing Plates: 12ga Stainless
- Shaft: Solid, Keyed Stainless Steel
- Drums: Specialty Coated
- Couplers: Specialty Coated
- Bearings: Greaseable, Stainless
- Cable: 5/32" Stainless Steel
- Rollers: 3" Magnum Original Carwash
- Fasteners: Stainless/Specialty Coated
- Torsion Springs: Galvanized
PREMIUM MODEL
- Hinges/Hardware: 11ga Galvanized
- Track: 3” Heavy Duty Galvanized
- Bearing Plates: 11ga Galvanized
- Shaft: Solid, Galvanized
- Drums: Die Cast Aluminum
- Couplers: Painted Cast Iron
- Bearings: Greaseable, Standard
- Cable: 5/32" Stainless Steel
- Rollers: 3" Magnum Original Carwash
- Fasteners: Galvanized
- Torsion Springs: Galvanized
PREMIUM MODEL
- Hinges/Hardware: 14ga Galvanized
- Track: 2" Heavy Duty Galvanized
- Bearing Plates: 11ga Galvanized
- Shaft: Hollow, Galvanized Steel
- Drums: Die Cast Aluminum
- Couplers: None
- Bearings: Standard Freeway
- Cable: 5/32" Galvanized Steel
- Rollers: Commercial Steel, 10 Ball
- Fasteners: Galvanized Steel
- Torsion Springs: Galvanized
YOUR CHOICE OF COUNTERBALANCE SYSTEMS
American Garage Door Supply’s door systems offer a number of counterbalance systems to meet your operation’s needs. Select our high cycle, rust-resistant torsion spring models for most applications or select our strap counterweight or cable counterweight systems for use in applications where you need them.
TORSION SPRING
Excellent for either manual or automated door systems, our high-cycle torsion spring models offer up to 100,000 cycles of safe, smooth and perfectly balanced operation. Choose either hot-dipped galvanized wire for standard corrosion-resistance or upgrade to totally rust-resistant stainless steel wire for those tougher situations.
STRAP COUNTERWEIGHT
Featuring a durable, rust-proof spool, aluminum winding hub, counterweight, guide tube and tough, virtually unbreakable reinforced nylon strap, our strap system offers you hundreds of thousands of cycles of smooth, quiet and dependable operation of your garage door system in the most demanding conditions. Best used with automated doors.
CABLE COUNTERWEIGHT
The cable counterweight models feature an aluminum counterweight drum, counterweight, guide tube and stainless steel non-rotating cable for smooth, reliable operation of your door cycle-after-cycle in rigorous conditions. Use for doors that require a counterweight system and are oversized. Best used on automated doors.
